OBD-DEV
ESP32-based OBD-II CAN bus development interface, built around the Macchina A0 platform.

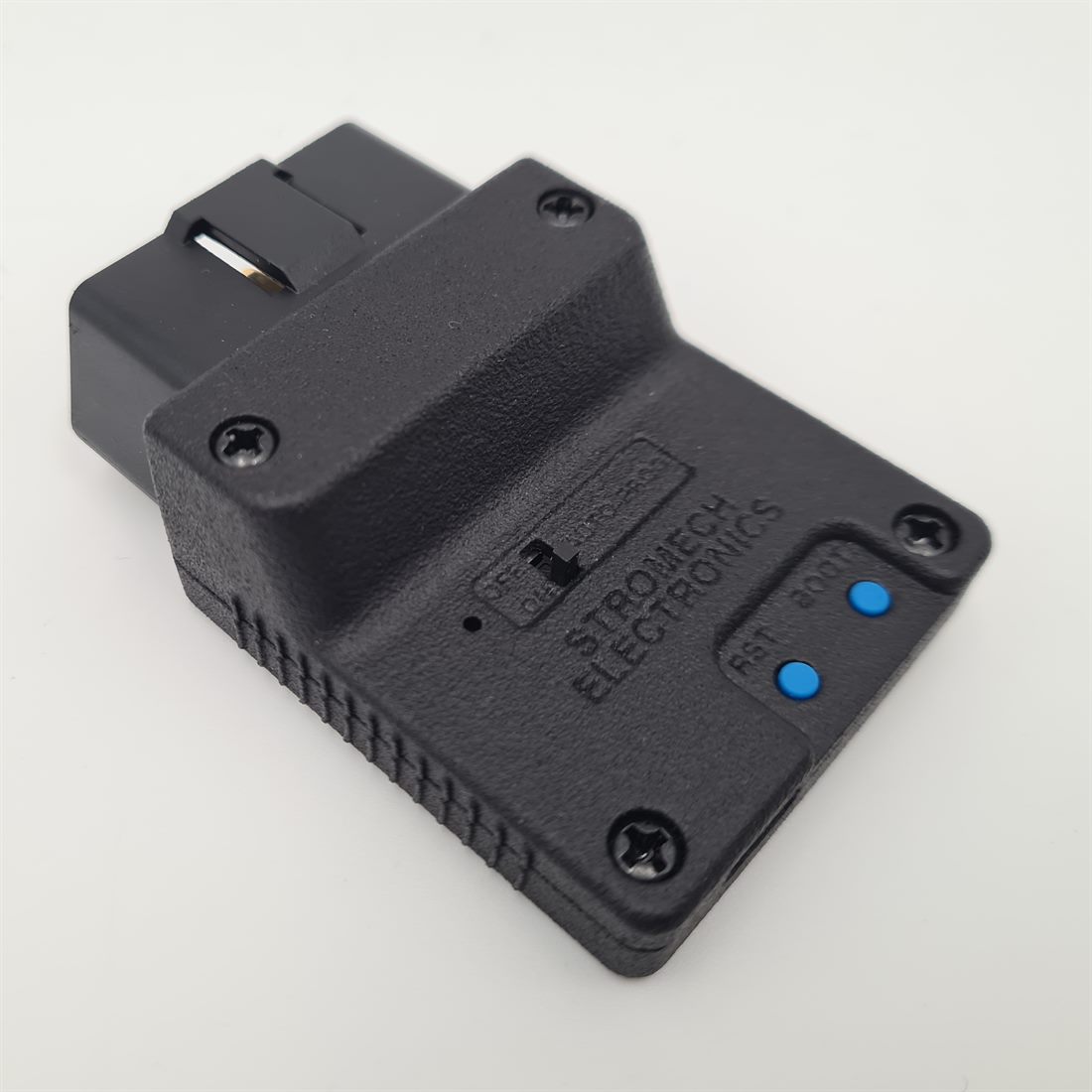

OBD-DEV — ESP32 OBD‑II CAN Bus Development Tool
OBD-DEV is an ESP32-based OBD-II development interface built around the Macchina A0 platform and compatible with A0 firmware.
It connects directly to the vehicle's OBD-II port and provides CAN communication together with USB-C, WiFi and Bluetooth connectivity. It's suitable for CAN monitoring, diagnostics, data logging, telemetry, reverse engineering and custom automotive projects.
A key improvement over a basic A0-style interface is the selectable AUTO / MANUAL programming mode. In AUTO mode, ESP32 programming works automatically through the USB interface. In MANUAL mode, automatic boot control is disabled and dedicated RESET and BOOT buttons give you full control during programming and debugging.
OBD-DEV is designed as a practical development tool rather than just a basic OBD scanner — it combines the familiar A0 ecosystem with additional hardware features that make programming, debugging and everyday automotive development easier.
- ConnectorOBD-II (SAE J1962), 16-pin, right-angle plug

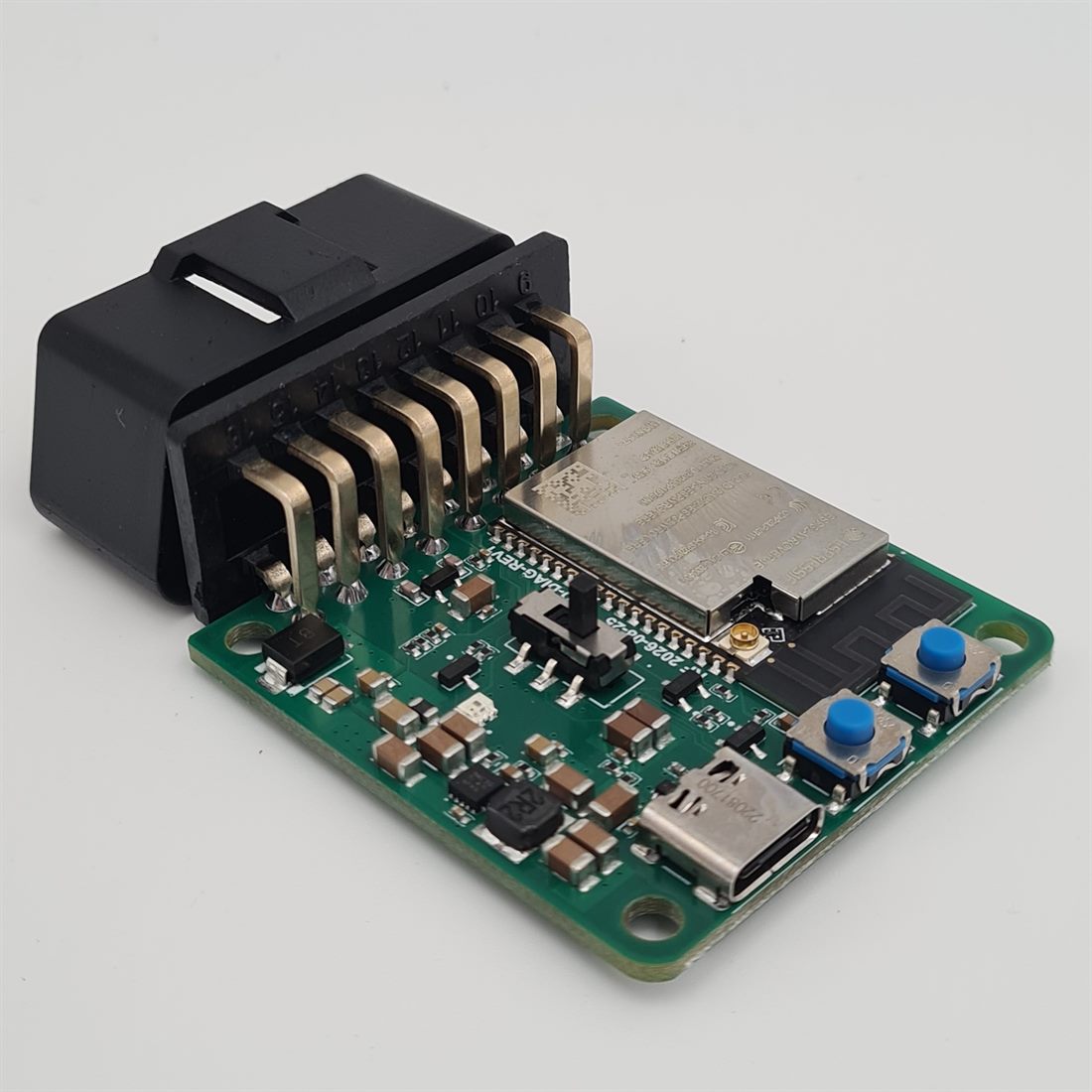

- MCUESP32-WROVER, dual-core, up to 240 MHz
- FirmwarePre-loaded with Macchina A0 firmware — or upload your own program
- CAN bus1 × high-speed CAN 2.0A/B, up to 1 Mbit/s, listen-only mode
- ConnectivityUSB-C, WiFi, Bluetooth Classic + BLE
- Storage128 MB onboard flash for data logging

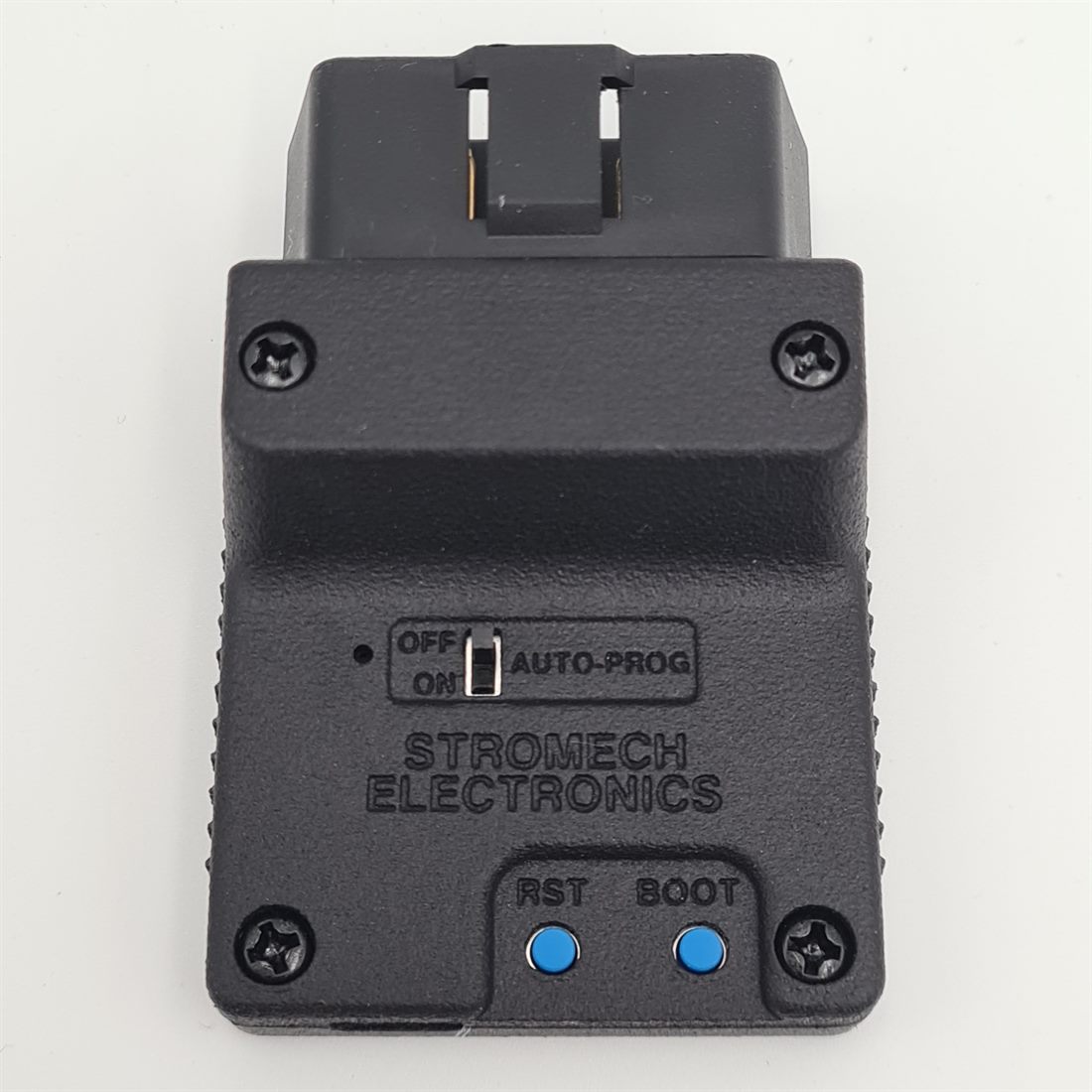

- ProgrammingSelectable AUTO / MANUAL mode, RESET & BOOT buttons
- Power6–36 V from the OBD-II port, or 5 V via USB-C
- ProtectionOvercurrent, transient and reverse-polarity protected input
- StatusRGB status LED
- Size67 × 47 × 22 mm, 40 g, PA12-HP nylon enclosure
- ShippingWorldwide
What's in the box
OBD-DEV device — plugs directly into the vehicle's OBD-II port, no separate cable needed.
Development and diagnostic tool. Not type-approved and not designed as a permanently installed vehicle component. Transmitting messages on a vehicle's CAN bus can affect vehicle systems — never do it while driving on public roads. See the datasheet for full safety information, and the Terms of sale for returns and warranty.
