OBD2 Gear Display
A compact digital gear indicator that shows your current gear in real time — motorsport feel for any car.
OBD2 Gear Display
This compact digital gear indicator shows your current gear in real time. It reads vehicle data through the OBD-II port and works out the gear from engine RPM and vehicle speed — no extra sensors or gearbox wiring required.

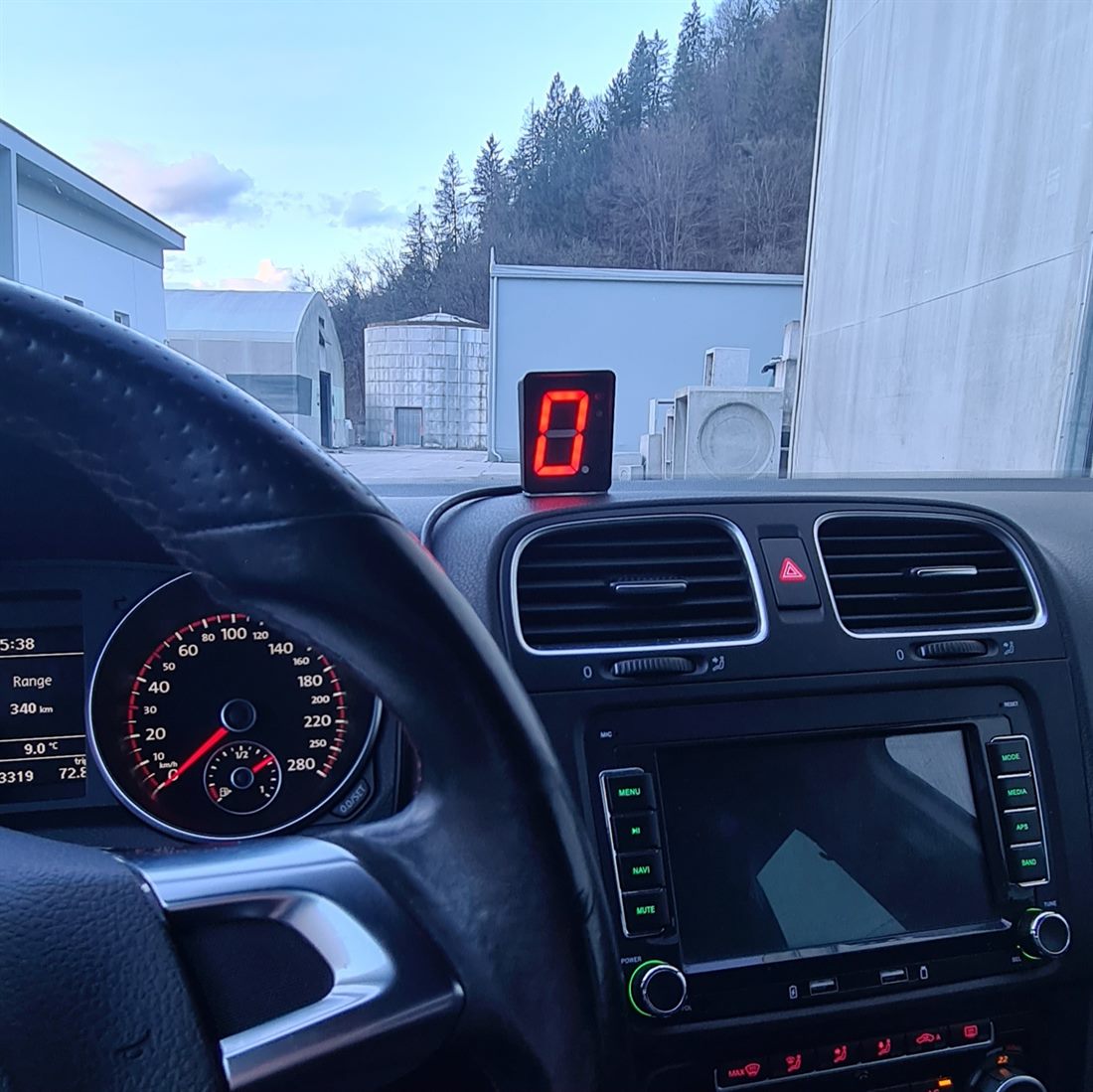

Installation is simple: plug the device into the OBD-II port and mount the display where it's clearly visible on the dashboard, using the supplied mount. After a short calibration drive through the gears, the unit automatically detects the correct gear during normal driving.
CAN bus communication has been standard on OBD-II since 2008, so most cars work right out of the box. Got an older vehicle? Many pre-2008 cars support it too — just ask and I'll check compatibility before you order.
What makes it special: I built it as a small gadget to give any car's interior a more motorsport feel, while still providing a genuinely useful, accurate gear display — complete with a Shift LED you can calibrate to light up at your own chosen RPM.
- InputOBD-II (RPM + vehicle speed via CAN bus)
- CompatibilityCAN bus OBD-II, standard since 2008
- Cable1.5 m, integrated OBD-II connector
- CalibrationGuided drive-through, all forward gears
- Shift LEDConfigurable RPM threshold
- ControlsCalibration, Shift LED and ON/OFF buttons
- MountingDashboard mount + double-sided tape
- ShippingWorldwide
What's in the box

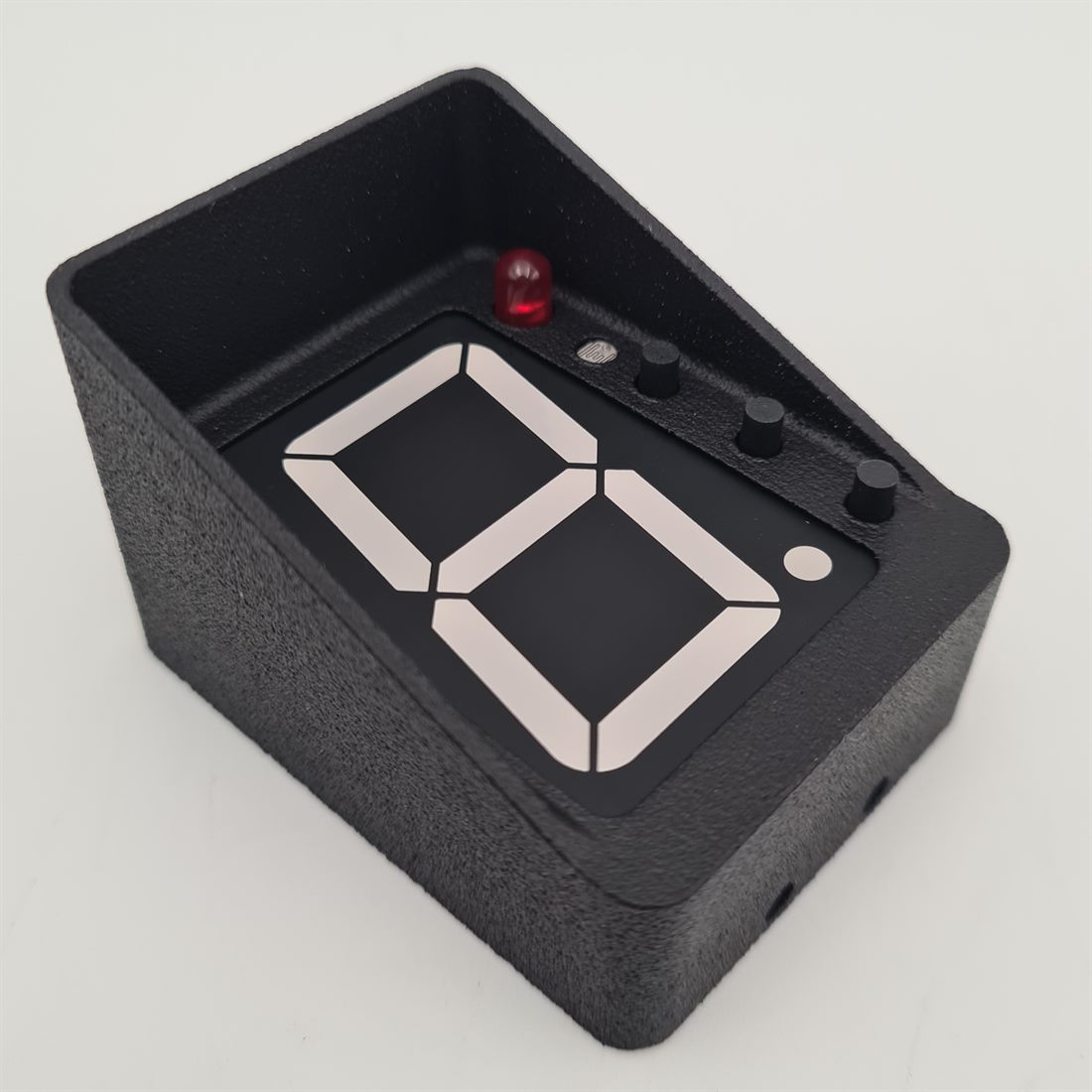

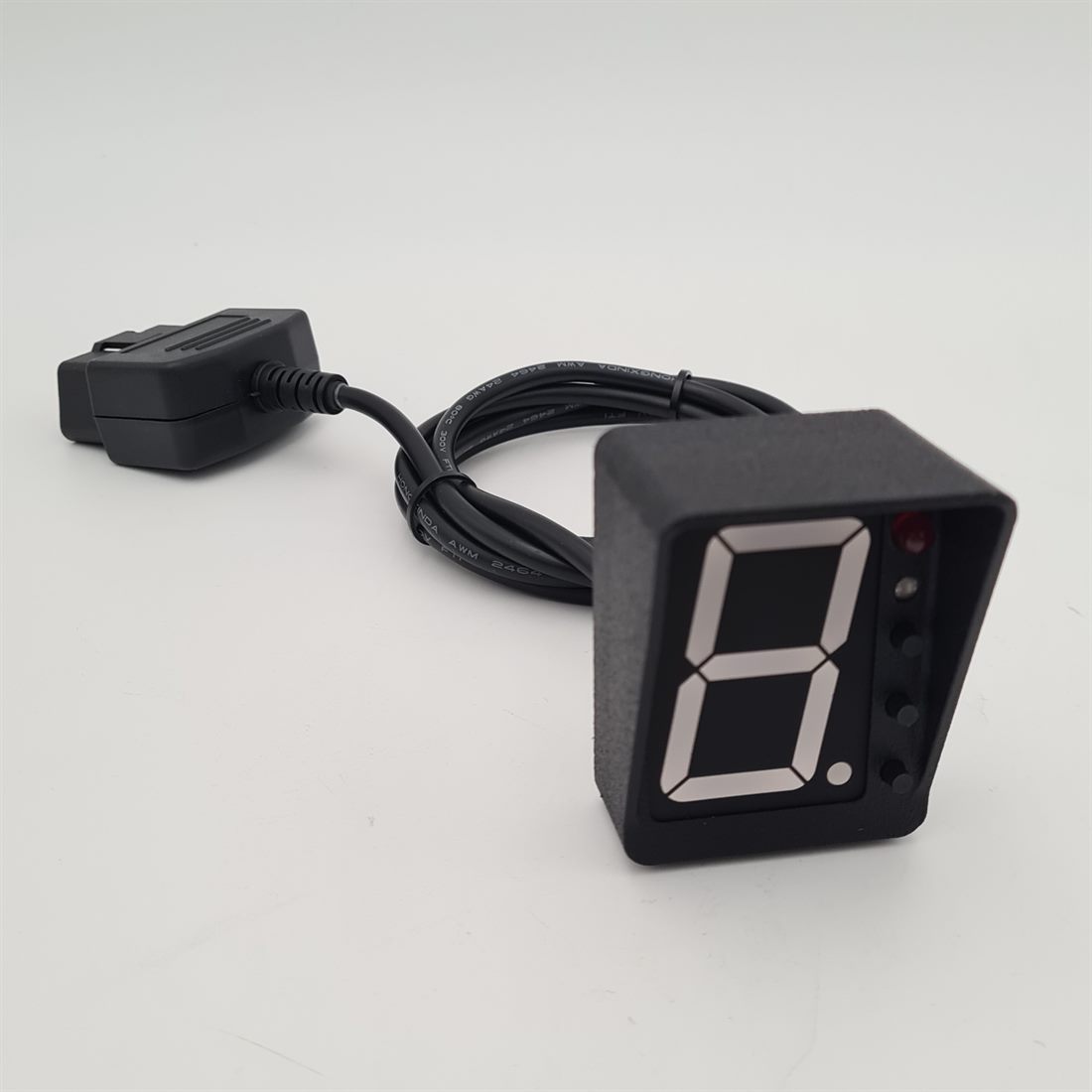

- Gear Display unit with sun/glare shield, 1.5 m cable and OBD-II connector
- Mounting kit — bracket + screws
- Double-sided adhesive tape, for mounting on the dashboard
For racing and off-road use only. Not designed, tested or certified for use on public roads — a supplementary display only. Your statutory consumer rights (including the legal guarantee) are not affected; see the Terms of sale. Safety information is in the Quick Guide above.

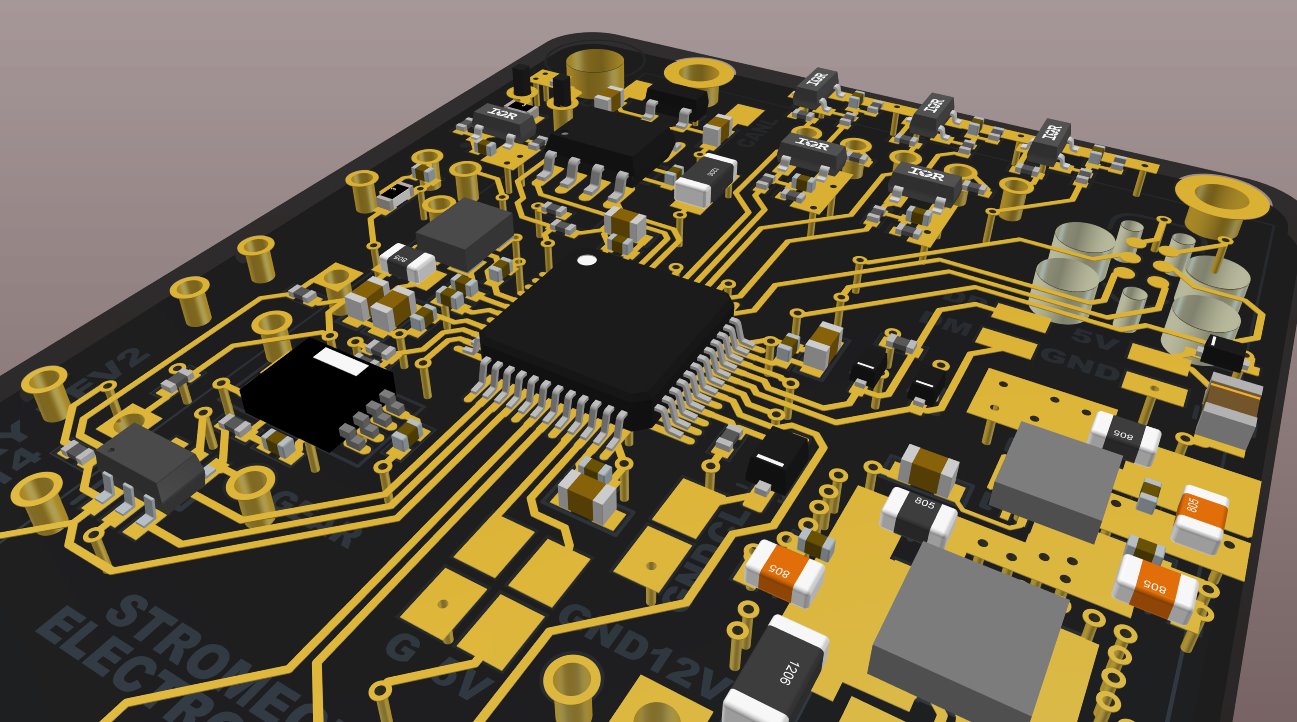

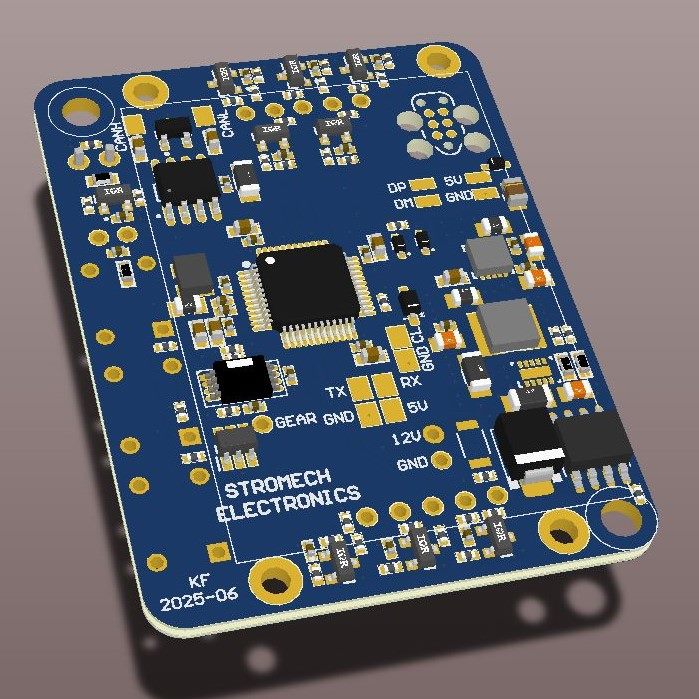

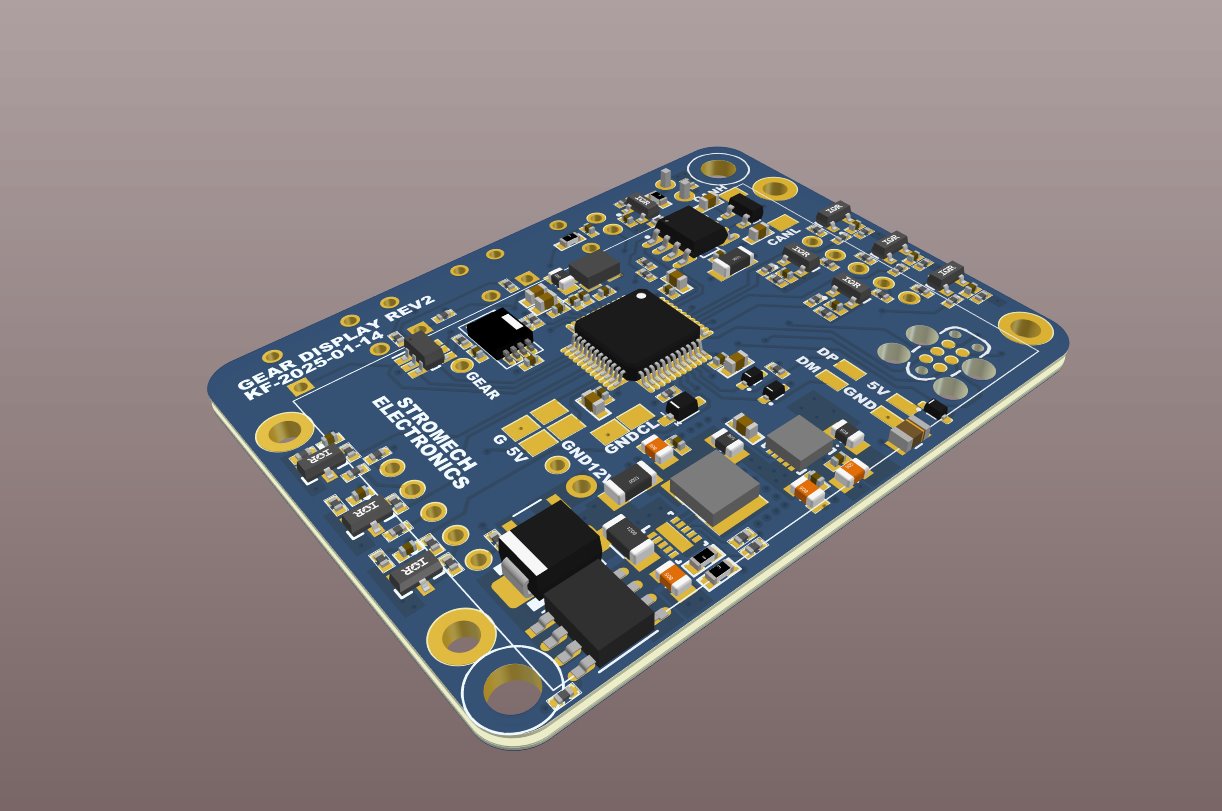

Designed in-house, down to the PCB

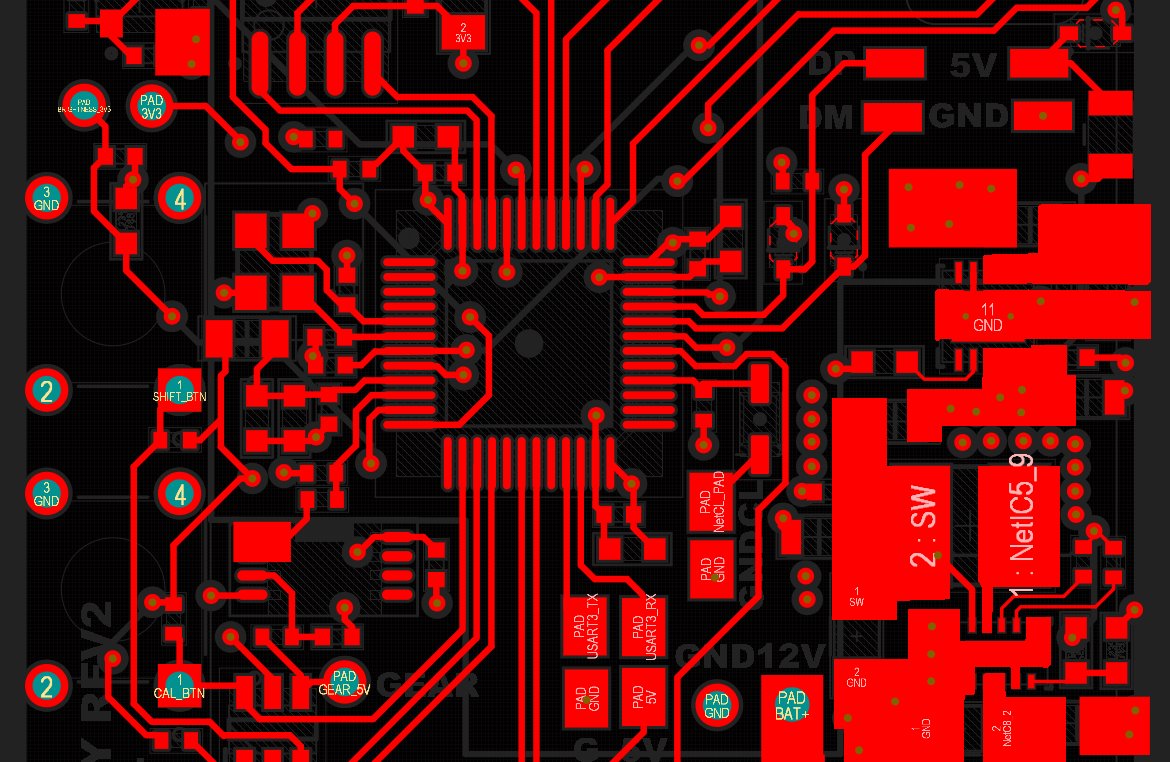

The board inside the Gear Display is designed and assembled by StroMech — schematic, PCB layout, CAN bus and USB interfaces, and protected inputs.
